2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

Product Categories
Chengdu Kedel Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

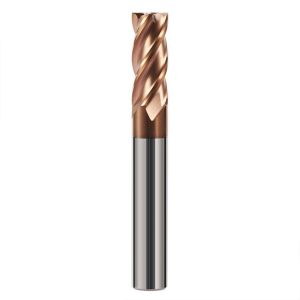

2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

Model Number : 2-4 FLUTES

Brand Name : KEDEL

Place of Origin : Sichuan, China

MOQ : 10

Price : $1.80-3

Flute Count : 2-4

Material : Tungsten Carbide

Grain Size : 0.6um

Shape : Flat

Helix Angle : 35 Degree

Hardness HRC : 55

Coating Types : Tin, AlTin, Tia in, Ticn

Cutting Diameter : 1-20mm

Shank Diameter : 3-20mm

Overall Length : 50-200mm

Flute Design : 55-Degree Deep Groove

Chip Flute : 2-4

Neck Design : Long Neck

Cutting Edge : Extended

Suitable Materials : CHISEL TOOL STEEL, ORDINARY STEEL PARTS, COPPER ALLOY, CAST IRON

Contact Now

2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining
parameter
value
Flutes
2-4
Chip Flute
2-4
Coating
/
Shape
Flat
Angle
35°
HRC
55°
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

Special end mill

This milling cutter is specifically designed for aluminum alloy, meaning that its material, geometry, coating, and other
characteristics have been optimized for the processing properties of aluminum alloy to ensure optimal cutting performance and tool
life.
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

55-Degree Deep Groove Flat Blade

The cutting edge of the tool is designed with a 55-degree deep groove shape. This design facilitates more efficient chip removal
during the cutting process, reducing friction between the tool and the workpiece, thereby improving cutting efficiency and
machining quality.
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining

Long Neck with Extended Cutting Edge

The long neck design allows the tool to reach deep into the workpiece for processing, making it suitable for areas that require
machining at greater depths or are difficult to access. Additionally, the extended cutting edge increases the tool's cutting
length, enhancing the material removal rate per pass and further boosting processing efficiency.
2-4 Flute Tungsten Carbide End Mill with 55-Degree Flat Bottom and 35° Helix Angle for CNC Machining
Number of Flutes
Cutting Diameter
Radius of fillet
Shank Diameter
Overall Length

























Four blade
d
R
D
L
1
3
4
50
1.5
4.5
4
50
2
6
4
50
2.5
7.5
4
50
3
8
3
50
3
9
4
50
3
9
3
50
4
12
4
50
5
13
6
50
5
13
5
50
6
15
6
50
77
20
8
60
8
20
8
60
9
25
10
75
10
25
10
75
11
30
12
75
12
30
12
75

13
45
14
100
14
45
14
100
15
45
16
100
16
45
16
100
18
45
18
100
20
45
20
100
2
6
4
75
3
12
3
75
4
16
4
75
5
18
5
75
6
24
6
75
8
25
8
75
10
30
10
75
3
12
3
75
4
20
4
100
5
30
5
100
6
30
6
100
8
35
8
100
10
40
10
100
10
50
10
100
12
45
12
100
12
50
12
100
6
45
6
150
8
50
8
150
10
55
10
150
12
55
12
150
14
70
14
150
16
80
16
150
18
75
18
150
20
80
20
150
8
60
8
200
10
65
10
200
12
70
12
200
14
80
14
200
16
85
16
200
20
90
20
200


NOTE:Customization can be done through drawings
